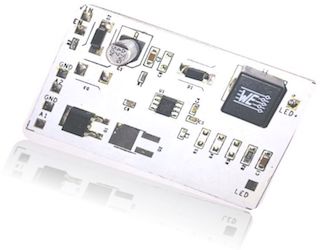

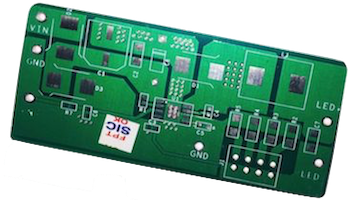

Control circuit board for LED Headlamp
Three LED Headlamp(Class B)
Two LEDs for Low beam and all three for High beam
Buck topology based with external circuit for switching(low /high beam)
Input voltage range 4.5 – 42 V
Output current up to 2 A (adjustable)
Reverse voltage protection
Over voltage protection
Transient protection(pulse 5a and 5b )
Thermal shutdown
10. Short circuit protection for LEDs(optional)
11. On board filter for EMI reduction (optional)
12. Fault detection (optional)
Similarly we have others model with required specification
We have to provide freedom to customer to choose out of three any manufacture
Reference board has include:
Demo board with Ever light Led configuration
Demo board has multiple current setting option
Schematic of circuit demo board
BOM of Demo board with approx. cost
All testing reports with standards
Gerber files (optional)
Thermal testing of Demo Board
Working demo video
4. Additional option we can provide
Selection of LEDs
Thermal distribution of LEDs(Heat sink design)
Selection of thermal grease or adhesive
Prototyping of multiple boards
